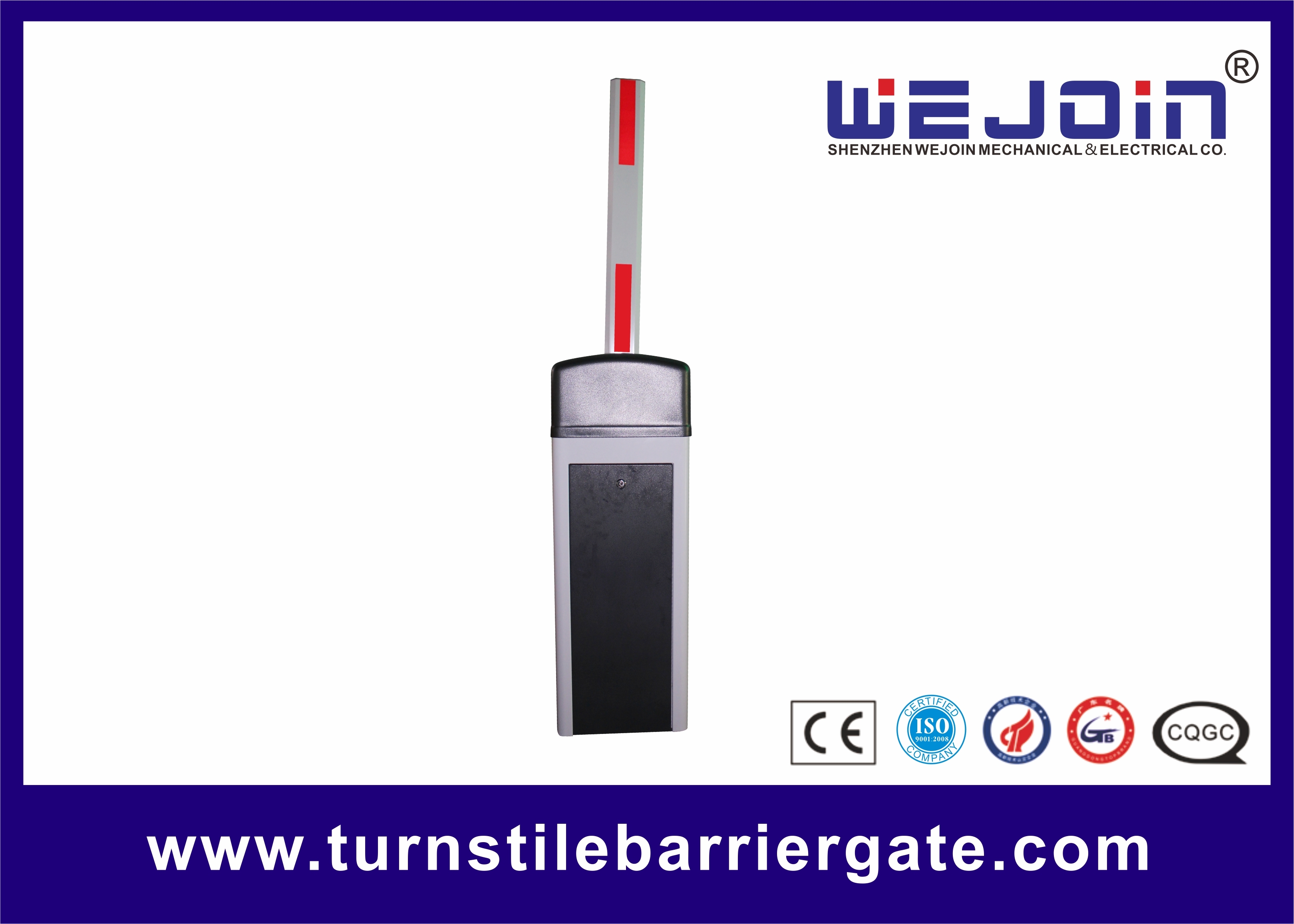

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface

1 zestaw
MOQ
negocjowalne
Cena £
DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Funkcja: Auto-odwracanie niedrożności
Silnik: Bezszczotkowy silnik DC24V
Prędkość: 1,5S-6s
Moc: 180 W.
Typ boomu: Proste ramię
Woltaż: AC100-265V
Podkreślić:

DC24V boom barrier gate

,

10A power supply boom barrier

,

RS485 interface boom gate

Podstawowe informacje
Miejsce pochodzenia: CHINY
Nazwa handlowa: WEJOIN
Orzecznictwo: CE ISO SGS
Numer modelu: DZ801
Zapłata
Szczegóły pakowania: Karton
Czas dostawy: 15 dni roboczych po otrzymaniu płatności
Zasady płatności: T/t
Możliwość Supply: 10000 zestawów/miesiąc
opis produktu

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface


Parking Barrier Gate Functional Features

1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.

2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.

4. support RS485 communication or RS485 folio online.

5. optional bluetooth module, convenient to debug anti-barrier door through small program.

6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.

8. 1.5~6 seconds adjustable speed of opening and closing.


Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screws, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the cabinet

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post



1

pc

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For the cabinet door

Remote Controller



2

pcs



Manual



1

pcs



Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”


Valid time of loop detector signal

In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.


DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface 0
